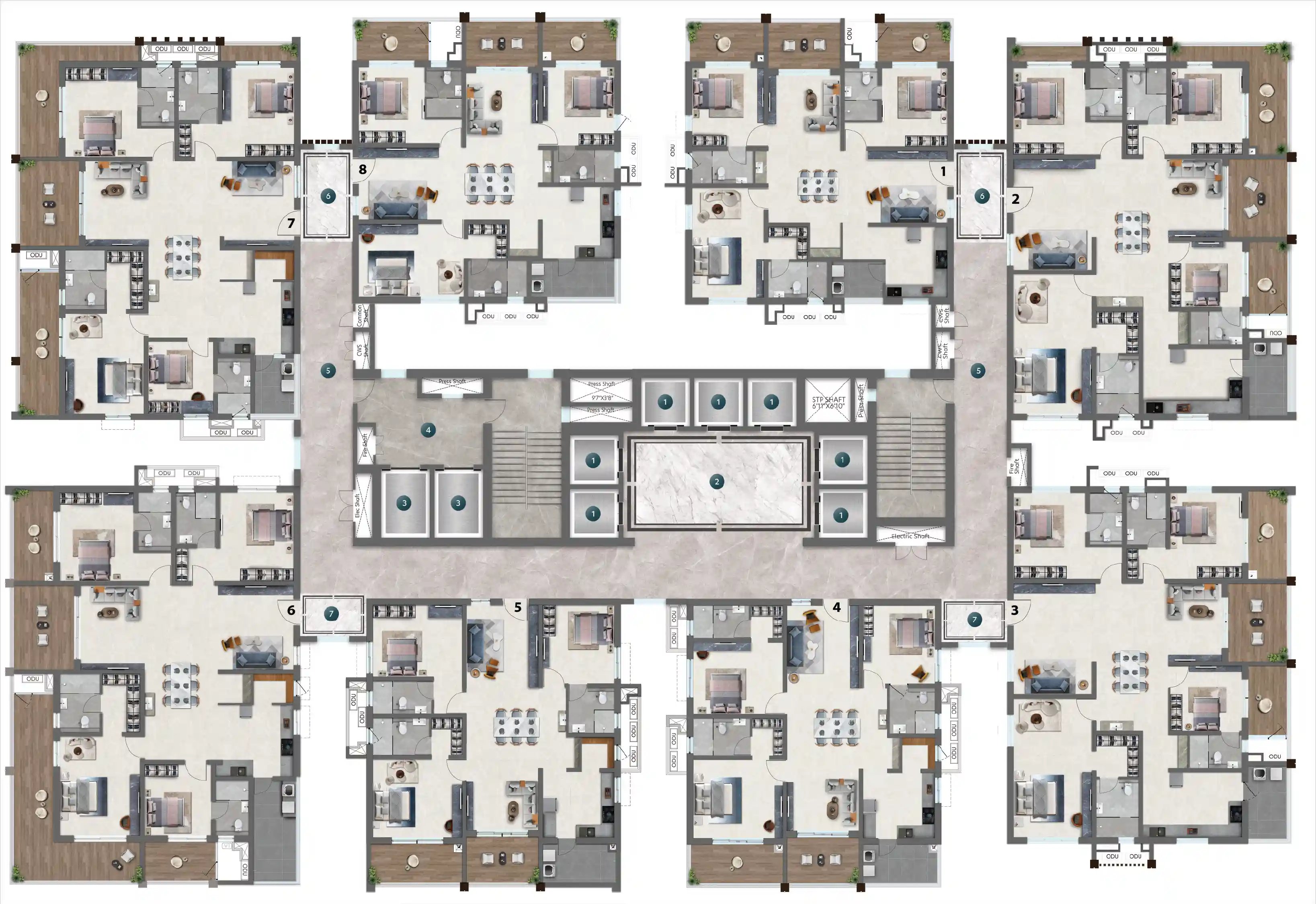

1
Lift
76 76
2
Lift Lobby
322 156
3
Good's Lift
76 106
4
Fire Lobby
156 99
5
Wide Corridor
80
6
Lobby (Unit 1,2)
80 160
7
Lobby (Unit 3)
100 66
8
Lobby (Unit 6)
100 66
9
Lobby (Unit 7,8)
80 160

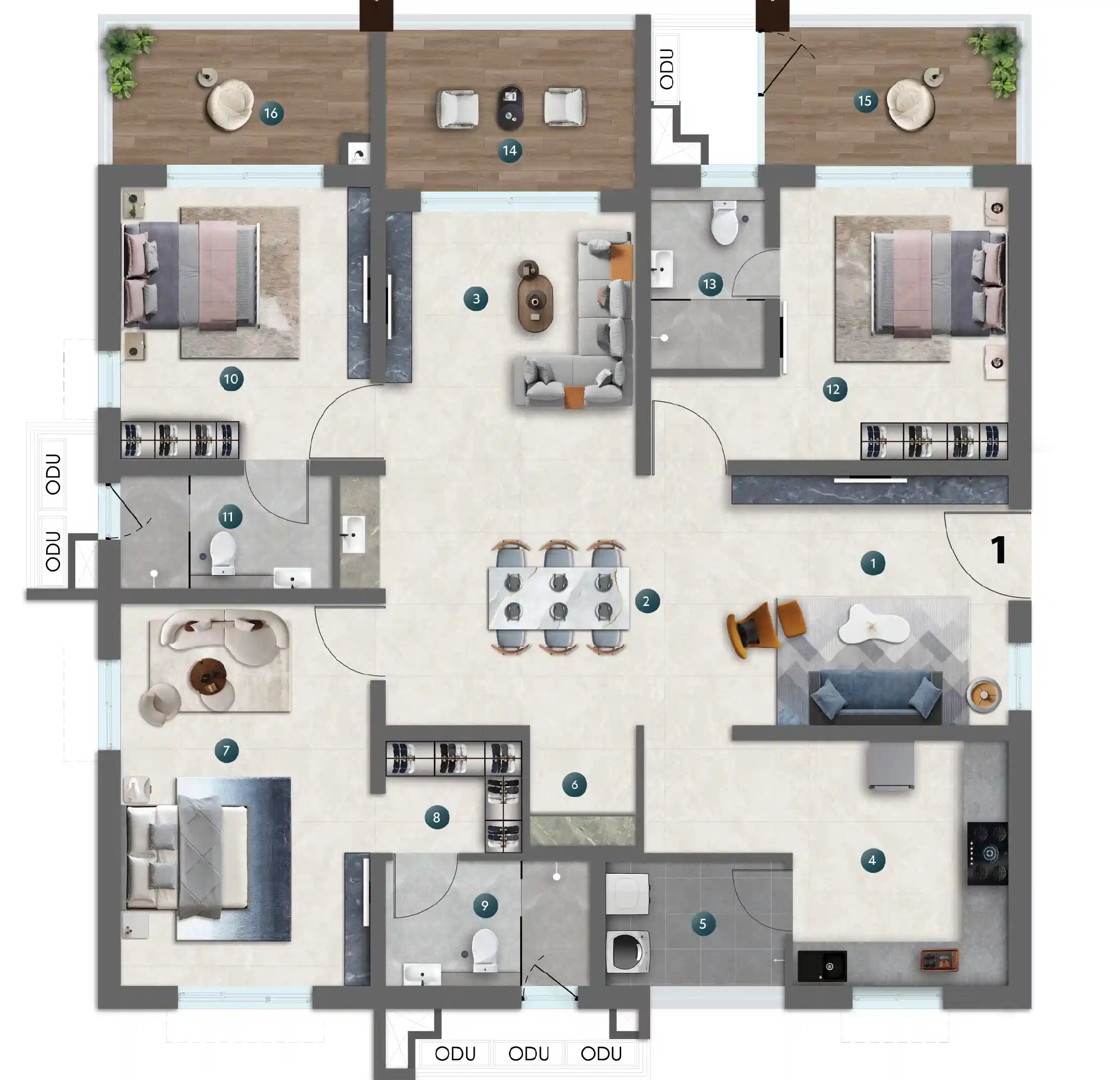

Unit 1 3 BHK | 2300 sft East
Floor Plan Details for Unit 1
1
Drawing Room
12'0" 11'0"
2
Dining
15'0" 11'0"
3
Living Room
11'0" 11'6"
4
Kitchen
9'6" 11'0"
5
Utility
8'3" 5'6"
6
Pooja Room
4'8" 5'2"
7
Master Bedroom
11'0" 17'0"
8
Closet / Walk-in Wardrobe
6'0" 5'2"
9
Master Toilet
9'0" 5'6"
10
Bedroom-2
11'0" 12'0"
11
Toilet (Bedroom-2)
9'4" 5'0"
12
Bedroom-3
10'4" 12'0"
13
Toilet (Bedroom-3)
5'0" 8'0"
Key plan
